Reason SSL Mixer Hardware Controller

This forum is for discussing Propellerhead's music software. Questions, answers, ideas, and opinions... all apply.
User avatar
nestoprod
Posts: 7
Joined: 20 Jul 2017

Post 30 Aug 2017

It sounds like a dream come true. I bought the nektar p1 for this purpose and it certainly can deliver, but cycling through the screens to get to different parameters definitely is not ideal.

Sent from my HTC 10 using Tapatalk


User avatar
selig
Moderator
Posts: 7323
Joined: 15 Jan 2015

Post 30 Aug 2017

Gaja wrote:Here's an idea about the record enabling/ automation button. They don't need to be mutually exclusive. In my vision the record enable button would simply act as Keyboard focus on instrument tracks, so you can select your synth from the mixer (of course I don't know if this is technically possible at all). The same button, with the help of a modifier button could be used to toggle to automation mode, so you could enable both automation and arm for recording very quickly on eight channels (that is if you can glide over those buttons with your finger). As I said, I don't know if this is possible or feasible, but I wanted to contribute my idea to this amazing project.
Thanks for doing this. It's really exciting to watch this grow!
The main problem with record enable concept is more that it is "track" based, and the mixer is "channel" based than anything to do with the technology behind it. In other words, it's more of a logic problem, in that channels and tracks are not the same thing at all in Reason.
The only time the two even come close to lining up is with audio channels and audio tracks, which DO have a 1:1 relationship.

In contrast, every channel CAN have an automation track, thus every channel can have an automation record enable - whether or not the hardware can access that function is another question, as it is with every control in Reason (and an area I'm not as familiar with, TBH).


Sent from some crappy device using Tapatalk
Selig Audio, LLC

User avatar
fieldframe
Posts: 596
Joined: 19 Apr 2016

Post 30 Aug 2017

dioxide wrote:
30 Aug 2017
Perhaps a delta wheel control for channel selection would be useful. This doesn't need to be larger than a knob but needs to be an encoder.
This is a great idea - I already have this set up on my channel strip remotemap for the Behringer X-touch Mini
Professional Rack Extension user interface design
Pongasoft CVA-7 | ReSpire layout concept

New album Built Environments out now!

Andy
Posts: 22
Joined: 03 May 2017

Post 30 Aug 2017

I havent read all post yet so bare with me if this was already suggested.

Why not use the layout of the Console 1 but simply add all the missing knobs and buttons for the FX sends etc. Simply keep the strip horizontal and add 8 faders, leave the buttons on top to switch channels for eq etc.

User avatar
geremix
Posts: 27
Joined: 30 Apr 2016

Post 31 Aug 2017

selig wrote: ... you don't need the master fader 99% of the time (...) in my mockup it doubled as a channel fader, negating the need for TWO faders in the master section
I'm with you in that aproach Selig. I did that in my mockup too. I know it's nice to have all the mixer controls represented one to one but one fader is enough for me at center channel if that can control a channel or the master with a simple switch. In my way of mixing I NEVER move the master from its original position. If the Reason mixer was real, that master fader would have spider webs all over .
dioxide wrote: Perhaps a delta wheel control for channel selection would be useful. This doesn't need to be larger than a knob but needs to be an encoder.
+1 (ohhh yeahh)
amcjen wrote: Speaking of inserts, I haven't seen any mockups other than my own that include them, either as part of the channel strip, or as the master inserts. Am I the only one that uses them?
I never use the mixer's inserts section. I do inserts in the rack and only dragging and dropping things around. In my default mixer view, they are hide.
amcjen wrote: I find them super interesting for making custom-type "presets" for certain types of tracks (...) They are great to scroll through while mixing to see if there's a better fit for a track in a mix.
That's very clever!! I'm gonna try that tomorrow in my next mix session!!
amcjen wrote: It should just feel natural. It shouldn't feel crammed or confusing. But it should also not include such symmetry that it forces you out of your creative zone into thinking about the tool rather than the work being done with the tool (...) With asymmetry you can even go by feel without looking at all (...) I take the symmetry and monochromatic color as a drawback, not a benefit.
That's exactly how I feel with lots of controllers. I'm with you in every word Allison
amcjen wrote: When I think about how I mix, I use the transport the most, then the faders to bring up rough mixes. Then I move to EQ, compression, and FX (...) I use the loop enable a ton, because there are sections that get messy from a clarity standpoint, or need help, and I get tired of always hitting the triple tap of stop-holdrewind-play.
Same approach over here! 🏻‍♂️
amcjen wrote: Markers could be easily added to this interface...
I'm about to cry
"Dear god, please bless Allison for her great ideas!!"


--
G E R E M I X
@bygeremix

User avatar
amcjen
Posts: 169
Joined: 14 Apr 2017

Post 31 Aug 2017

Hiya! Just wanted to let everyone know that I've been REALLY enjoying all the great ideas! About to head out to the playa tomorrow morning and spent the day packing so no time to respond.

Looking forward to responding to everyone once I return! Also looking forward to some more mockups from some of you. :)

- Allison

User avatar
dioxide
Posts: 926
Joined: 15 Jul 2015

Post 01 Sep 2017

Okay, here is my take on this. It started out as a slight edit and ended up being completely different. Some of the things here are more to my preference – horizontal EQ, more symmetry between similar sections. There are a few gaps and some of this is just pure wishful thinking (Remote Spectrum EQ feedback).

Anyway, here it is. There could also be other layouts based on this.
Rework C.jpg
You do not have the required permissions to view the files attached to this post.
Last edited by dioxide on 01 Sep 2017, edited 1 time in total.

User avatar
dioxide
Posts: 926
Joined: 15 Jul 2015

Post 01 Sep 2017

And here is another version. In this version the Channel layout more closely resembles the software Mixer.
Rework C Reslice.jpg
You do not have the required permissions to view the files attached to this post.

User avatar
amcjen
Posts: 169
Joined: 14 Apr 2017

Post 09 Sep 2017

dioxide wrote:And here is another version. In this version the Channel layout more closely resembles the software Mixer.
Rework C Reslice.jpg
I'm really digging this layout! I'm still undecided about the horizontal EQ, but I also realize I might just be stuck in a rut.

There is, I believe, a really amazing, intuitive, easy to use layout that exists in a tactile form, for the Reason mixer. And we will find it. :)

User avatar
amcjen
Posts: 169
Joined: 14 Apr 2017

Post 09 Sep 2017

Aaaand, back from the playa and car trouble and an expensive car tow back to civilization and mostly back to real life again.

Currently in Portland OR attending Larry Crane's recording workshop this weekend. Larry publishes TapeOp magazine and has a really great thing going on up here. Will be taking pics of his setup (a Neve console IIRC) and see how it feels.

Will respond more shortly!

User avatar
aeox
Posts: 1813
Joined: 23 Feb 2017
Location: Oregon

Post 09 Sep 2017

amcjen wrote:
09 Sep 2017
Aaaand, back from the playa and car trouble and an expensive car tow back to civilization and mostly back to real life again.

Currently in Portland OR attending Larry Crane's recording workshop this weekend. Larry publishes TapeOp magazine and has a really great thing going on up here. Will be taking pics of his setup (a Neve console IIRC) and see how it feels.

Will respond more shortly!
Welcome, hope the city treats you well.
whoahh

Last edited by aeox on 24 May 2018, edited too many times in total.

User avatar
syncanonymous
Posts: 356
Joined: 16 Mar 2015
Location: UK and France

Post 09 Sep 2017

Setting up screen sets is critical for serious DAW work afaiac. SAW Studio has always been like this. It takes some time to set up the various layouts, but once you do and get used to using it, editing becomes so much easier. In SAW Studio you save your various layouts to F Keys; 24 in all using alt for the other 12. You can actually make as many as you want, just saving the layouts to fkey files. I know Reaper has custom screen set functionality, too :-)

User avatar
amcjen
Posts: 169
Joined: 14 Apr 2017

Post 10 Sep 2017

aeox wrote:
amcjen wrote:
09 Sep 2017
Aaaand, back from the playa and car trouble and an expensive car tow back to civilization and mostly back to real life again.

Currently in Portland OR attending Larry Crane's recording workshop this weekend. Larry publishes TapeOp magazine and has a really great thing going on up here. Will be taking pics of his setup (a Neve console IIRC) and see how it feels.

Will respond more shortly!
Welcome, hope the city treats you well.
Are you in Portland?

User avatar
amcjen
Posts: 169
Joined: 14 Apr 2017

Post 10 Sep 2017

syncanonymous wrote:Setting up screen sets is critical for serious DAW work afaiac. SAW Studio has always been like this. It takes some time to set up the various layouts, but once you do and get used to using it, editing becomes so much easier. In SAW Studio you save your various layouts to F Keys; 24 in all using alt for the other 12. You can actually make as many as you want, just saving the layouts to fkey files. I know Reaper has custom screen set functionality, too :-)
Most definitely. However, despite various screen setups, do you still mix primarily onscreen, using a mouse?

Just curious as we've been going deep on how to most usefully utilize a physical controller for a DAW like Reason.

User avatar
aeox
Posts: 1813
Joined: 23 Feb 2017
Location: Oregon

Post 10 Sep 2017

amcjen wrote:
10 Sep 2017
aeox wrote:
Welcome, hope the city treats you well.
Are you in Portland?
Yes! :thumbs_up:
whoahh

Last edited by aeox on 24 May 2018, edited too many times in total.

User avatar
amcjen
Posts: 169
Joined: 14 Apr 2017

Post 10 Sep 2017

aeox wrote:
amcjen wrote:
10 Sep 2017
Are you in Portland?
Yes! :thumbs_up:
Slick! We got rain today, that's a really good thing for all the .

For what it's worth, I absolutely love your city. It's at the top of my list for "if I ever decide to move" list. ️

User avatar
syncanonymous
Posts: 356
Joined: 16 Mar 2015
Location: UK and France

Post 10 Sep 2017

amcjen wrote:
10 Sep 2017
syncanonymous wrote:Setting up screen sets is critical for serious DAW work afaiac. SAW Studio has always been like this. It takes some time to set up the various layouts, but once you do and get used to using it, editing becomes so much easier. In SAW Studio you save your various layouts to F Keys; 24 in all using alt for the other 12. You can actually make as many as you want, just saving the layouts to fkey files. I know Reaper has custom screen set functionality, too :-)
Most definitely. However, despite various screen setups, do you still mix primarily onscreen, using a mouse?

Just curious as we've been going deep on how to most usefully utilize a physical controller for a DAW like Reason.
Yes, sadly, probably 95% mouse for mixing. Even if I automate with a controller, I will clean up the automation after...probably 90% of the time. Surely, the controller design is all important for your purposes. Controller Labelling then becomes crucial. Personally, by the time I have mapped the controller, I have already finished editing with the mouse. If the controller knew my next mixing task beforehand ;-)...

User avatar
dioxide
Posts: 926
Joined: 15 Jul 2015

Post 10 Sep 2017

amcjen wrote:
09 Sep 2017
I'm really digging this layout! I'm still undecided about the horizontal EQ, but I also realize I might just be stuck in a rut.
This layout makes most sense if you have the Spectrum EQ window on your monitor. Otherwise I agree a vertical layout is more in line with what people expect from mixers, although mainly on a multichannel mixer instead of a single control style strip controller.

User avatar
dioxide
Posts: 926
Joined: 15 Jul 2015

Post 10 Sep 2017

Laying out the mixer got me thinking about my mixer setup and the limitations of the Vestax VCM600 that I use at the moment. It has 8 pots per channel but only 6 actual channels which means a lot of banking up and down.

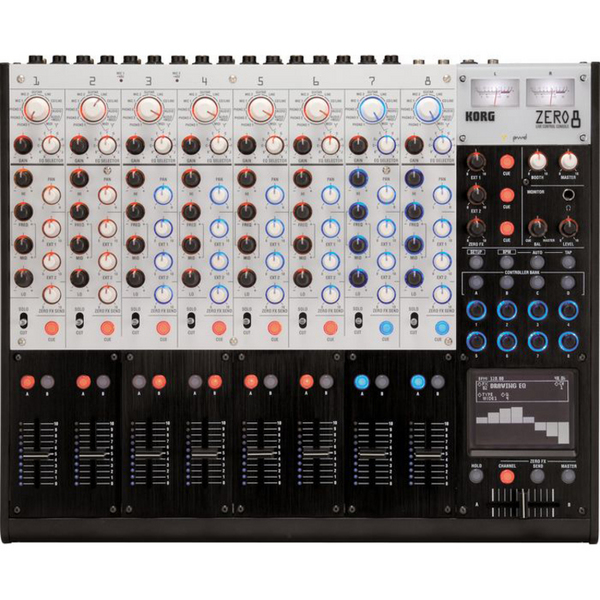

After a bit of digging I found this which can be used as a MIDI controller. I'm going to try and find one and see how well it maps. It also has 8 pots per channel although it has less buttons.
http://www.pssl.com/Korg-Zero-8-Live-CO ... er-WMidiFx

I also managed to get my hands on one of these, so I'm going to see how well this works for me. I'm considering getting a Doepfer Drehbank to add to it. I'm realising that traditional MIDI is sometimes better than USB MIDI as you can easily chain them together.
http://fr.audiofanzine.com/console-midi ... c/VMC-207/

Finally Faderfox have some new products that can be chained together into a single controller.
http://www.faderfox.de
There is already a discussion of it here on RT: viewtopic.php?t=7502004
Perhaps there is a third unit planned also featuring rotaries: http://faderfox.de/new-module.html

Sorry for the OT on the original subject of a control strip style controller, but I thought some people here might find these interesting.

User avatar
aeox
Posts: 1813
Joined: 23 Feb 2017
Location: Oregon

Post 10 Sep 2017

amcjen wrote:
10 Sep 2017
aeox wrote:
Yes! :thumbs_up:
Slick! We got rain today, that's a really good thing for all the .

For what it's worth, I absolutely love your city. It's at the top of my list for "if I ever decide to move" list. ️
The rain was nice! Most of the year is rain so I've grown to really enjoy it.

Yea it's a nice city. I haven't gotten tired of it yet! :mrgreen:
whoahh

Last edited by aeox on 24 May 2018, edited too many times in total.

User avatar
Catblack
Posts: 746
Joined: 15 Apr 2016

Post 10 Sep 2017

amcjen wrote:
09 Sep 2017
Aaaand, back from the playa and car trouble and an expensive car tow back to civilization and mostly back to real life again.
Hope you had a great time! I first went to the Burn in 2000, had my beats played at the Man base (the giant white A) in 2001 while a guy I met played live cello over it. Even did a decade of setup and playa restoration out there. There ain't nuthin like sharing fire.


(Also I'm finding this whole thread amazing, I've been thinking about solutions to similar problems for a while.)
Do you sing like Olive Oyl on purpose? You guys must be into the Eurythmics.

User avatar
amcjen
Posts: 169
Joined: 14 Apr 2017

Post 10 Sep 2017

Catblack wrote:
amcjen wrote:
09 Sep 2017
Aaaand, back from the playa and car trouble and an expensive car tow back to civilization and mostly back to real life again.
Hope you had a great time! I first went to the Burn in 2000, had my beats played at the Man base (the giant white A) in 2001 while a guy I met played live cello over it. Even did a decade of setup and playa restoration out there. There ain't nuthin like sharing fire.


(Also I'm finding this whole thread amazing, I've been thinking about solutions to similar problems for a while.)
Wow, such a history you've had out there. So special. This was my fourth but certainly not my last. I bet it was amazing hearing your own music played out there. What an experience!

User avatar
amcjen
Posts: 169
Joined: 14 Apr 2017

Post 10 Sep 2017

So I just finished the weekend recording workshop with Larry (and it was amazing btw! Highly recommended if you get a chance to do it. Super affordable for the insight and expertise you'll get out of it!)

But point is, I got to see his Neve 5088 console up close. It has no EQs or dynamics on the channels, just trims, bus sends, and auxes, and it is such a great size--totally usable. This is really influencing the size and layout of the fader bank sections for the hardware controller--and it's very close to what Selig had suggested.


User avatar
selig
Moderator
Posts: 7323
Joined: 15 Jan 2015

Post 11 Sep 2017

Larry's setup looks cool - I know a few other folks with studios in Portland, but I'm guessing you're already heading home.

There's another approach similar to this, influenced partly by the SSL Duality. That is to put the send/insert section in hardware on each channel, still using the center channel approach for the FULL channel strip controls, PLUS using smaller displays to create a meter bridge approach (the SSL Duality part). The meter bridge would primarily show metering, but could also follow the center channel to show all EQs when you adjust an EQ in the center section, all dynamics when you adjust dynamics, etc.

With this approach you can scan the console and see all the EQs at once, all the dynamics at once (really helpful IMO), all input/routings, all inserts, and all sends (even though they also exist in hardware). You could also use the displays for other things depending on what the software allows, or even for external sources such as external spectrum displays, phase meters, X/Y displays, etc.

Lots of possibilities…


Sent from some crappy device using Tapatalk
Selig Audio, LLC

User avatar
amcjen
Posts: 169
Joined: 14 Apr 2017

Post 11 Sep 2017

This sounds really interesting Selig (and yes, just flew out this morning, shoot).

I'm going to hunt for some Duality videos online that demonstrate what you're describing Bc it sounds awesome (unless you know of some already?)
